8100 gallon nh3 delivery unit

8100 gallon nh3 delivery unit

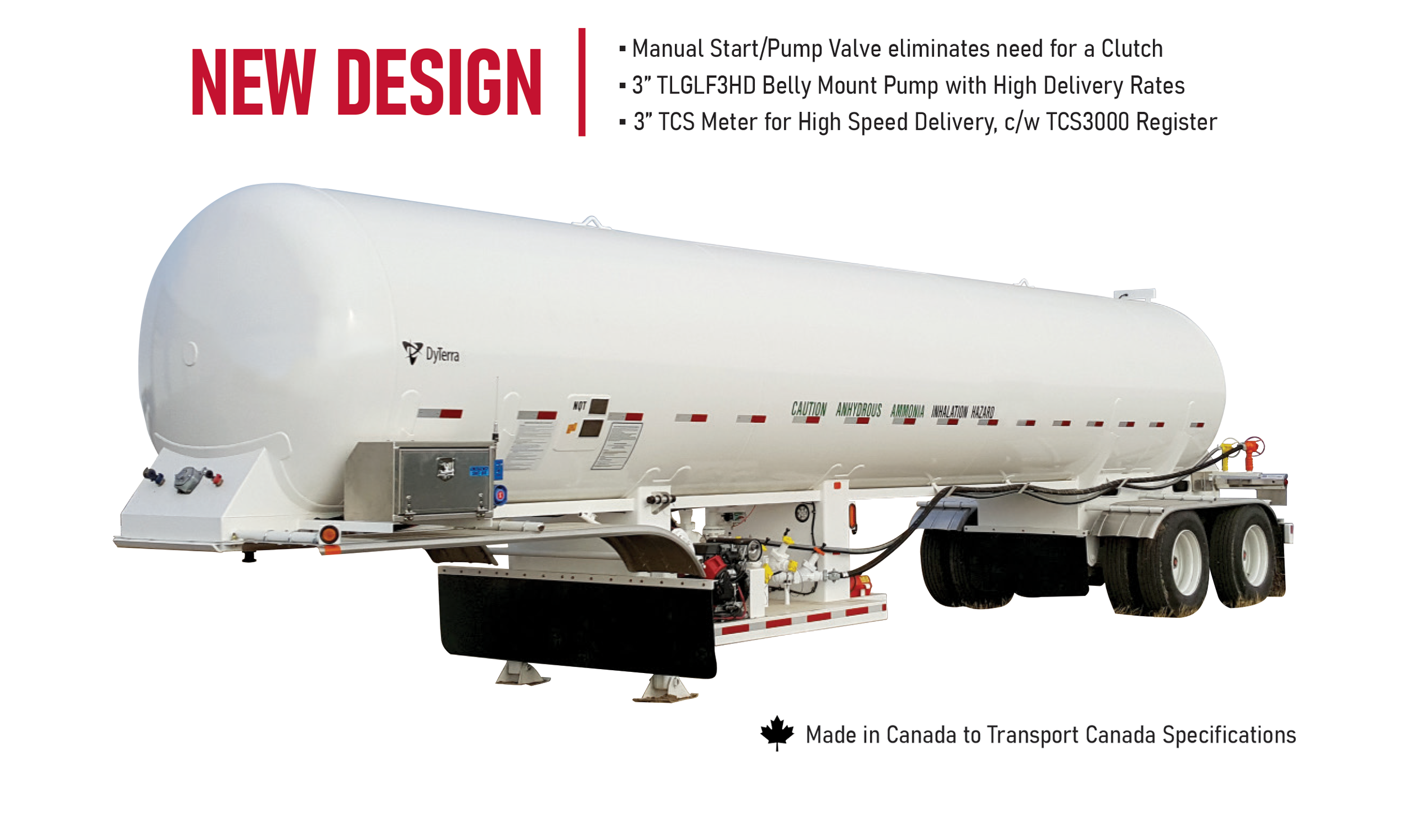

The DyTerra 8100 tanker delivers more than just NH3. This advanced low-profile design offers a lower centre of gravity for greater stability. Fill up to four 2000-gallon wagons with just one load.

standard features

  • Made in Canada to Transport Canada Specifications

  • 3" Base Mount Pump with Delivery Rates at well over 100 GPM

  • Completely Self-Contained Gas Engine & Electric Clutch Drive

  • 3" Meter for High Speed Delivery

  • 2" Mass Flow Meter also available

  • 74" Diameter for Low Centre of Gravity

technical specifications

NH3 NQT Tank with a capacity of 8100 USWG
MAWP: 265 PSI
X-ray: per ASME Code
PWHT: Yes
Heads: 2:1 Elliptical
Material: Shells: SA-516-70 / Heads: SA-516-70 / Stainless Steel ribs
Dimensions: 74” inside diameter tank for low centre of gravity, 39’ length for maximum capacity,
yet practical for field delivery

DELIVERY


  • 1½ S.S. Braid NH3 delivery hose

  • 3” Blackmer TLGLD3F high flow pump

  • 22HP Honda Gas Engine for self-contained power

  • Portable fuel tank

  • Pulley and belt drive system with electric clutch

  • LC MA15 3” High Flow Meter with LCR II Register

  • Endress & Hauser Mass Flow Meter option available at no additional charge

  • Fill connections on both sides of trailer

  • 3” 300# flanged ISC valve outlet to pump

  • BASE Emergency shut-off

  • All steel piping with welded flanged connections where possible

  • 3” High Flow Meter w/Register, rated to 200GPM (757 L/min.)*
    *
    Mass Flow Meter option also available
