MICROCOTE® LIQUID IMPREGNATION SYSTEM

THE RIGHT EQUIPMENT FOR YOUR LIQUID IMPREGNATION NEEDS

There are three main types of liquid applications being used in the industry today: Micronutrients, Dust Control Oils and Nitrogen Stabilizers. DyTerra has spent years developing the best high quality liquid impregnation technology to support a wide range of customer blending equipment. In addition, our team of experts have the knowledge and experience you can count on for a timely and successful implementation.



CHOOSE YOUR SYSTEM

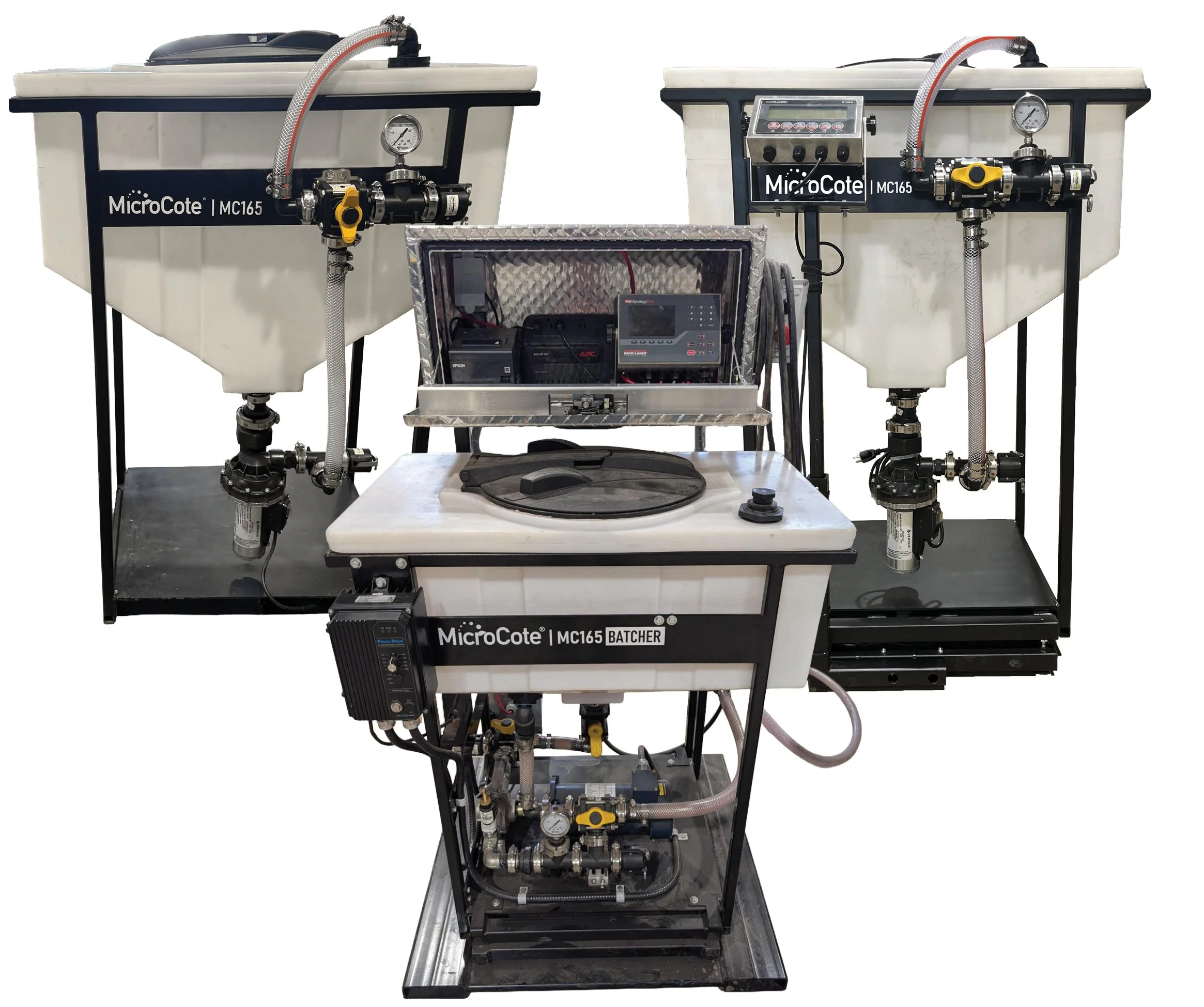

MC165

Portable & Versatile
The MC165 is designed for applying micronutrients, nitrogen stabilizers, dust control products, and other liquid additives directly onto fertilizer. Compatible with a wide range of product types, the system can be configured for various coating and blending applications.

Built Around Your Requirements
Multiple measurement and control options are available, allowing each system to be configured to suit your operation. From simple transfer systems to automated batching capabilities, the MC165 can be tailored to the way you work.

Easy to Deploy
Operating on standard 120V power, the MC165 can be moved between locations and connected to virtually any conventional electrical outlet. Its compact footprint makes it a practical option for a wide variety of facilities and applications.

Units starting at $3,395.

View mc165 brochure

Our systems are highly customizable! we offer:

Features:

  • Tested reliable components

  • Heavy-duty welded tube-frame construction

  • Meets Measurement Canada Regulations

  • Automated batch blending

  • Custom designs

options:

  • Custom spray bars available

  • Pneumatic mixing systems

  • Custom motor starter panels

  • Measurement Canada Scale Inspections

view our microcote brochure
microcote troubleshooting



This simple tank-and-pump system is a cost-effective solution for those who want to offer their customers coated granular fertilizer. The cone tank features a large access opening on top and a multifunctional frame for optional scale mounting. This unit can pump 30ft high with a maximum viscosity of 800 centipoise at 30-35 litres per minute. However, the pump can be swapped to best meet your application if needed.

STANDARD FEATURES

  • 110V diaphragm pump with integrated ON/OFF control

  • 165L cone tank

  • Liquid-filled pressure gauge on pump discharge

  • Camlock fittings on discharge & drain

  • Sturdy multifunctional steel frame construction

OPTIONAL

  • 50 feet of 1" reinforced discharge hose

  • Inline flow meter on discharge

  • Scale indicator

  • Motor starter/VFD
