OUTBACK GUIDANCE



DyTerra has become a dealer of Outback Guidance® products, joining forces to enhance your farming experience with groundbreaking technologies. Since 2001, Outback Guidance® has dedicated itself to providing easy-to-use and affordable precision farming solutions. The latest innovation, the MaveriX™, powered by Hemisphere GNSS®, introduces state-of-the-art guidance, steering, and application control with its intuitive tablet-like interface and customizable widgets. With the M7 and M10 terminals, the eDrive™M1 autosteering controller, the eDrive™ESi² electric wheel, and the A631 smart antenna, MaveriX™ offers superior centimeter-level performance and supports various guidance modes.

Maverix™ Products and features

M7 (left) | M10 (Right)

M7 or M10
Maverix Terminals

  • 7" and 10" high-definition touch screen with pinch-to-zoom capability

  • New User Interface for intuitive handling and customer experience

  • Tablet like operation

  • Customizable widgets allow the user to define their screen layout based on preference and operation

  • Up to 6 working screen layouts that can be saved and changed on the fly

  • Detailed 3D machine models and advanced viewing angles

  • Easily connected with built-in WiFi to support over-the-air software updates without the need for additional hardware

Part Number: M7”- 910-4026-10 | M10” - 910-4027-10

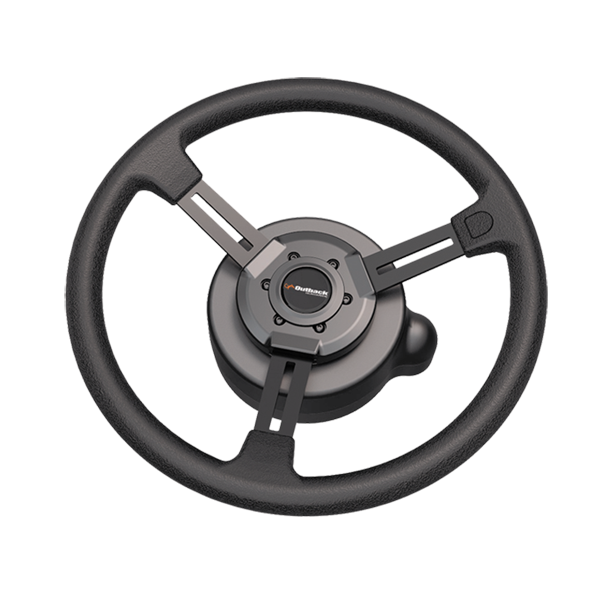

eDrive™Esi²
Electric Wheel

  • Combined it with our eDrive™M1, XD™, or XC™ to deliver accurate automated steering performance

  • Easy calibration

  • Simple installation

  • Model-specific kits allow for quick installation by the grower

  • Whisper quiet/high torque electric wheel works on even the hardest-to-steer vehicles

Part Number: 910-4024-10

eDrive™M1
Next-generation steering controller

  • Utilizes a 6-axis Inertial Measurement Unit to provide growers with reliable centimeter-level performance

  • Easy, multi-step calibration process to support end-customer installation

  • Integrated valve driver to utilize hydraulic retrofit and OEM valves without the need for additional hardware

  • Supports Straight, Contour, AB-Contour, and Circle Pivot steering modes

  • Integrates Shuttle Shift and reverse steering capabilities

  • Features eTurns for automated headland turns

  • Easy installation with over 1,500 models covered

  • Facilitates precise steering tasks such as tillage, spraying, harvesting, spreading, planting, bedding, and nutrient placement

Part Number: 806-1047-10

A631
Smart Antenna

  • All-in-one, Triple-Frequency, Multi-GNSS Receiver Solution

  • Tracks GPS, GLONASS, BeiDou, Galileo and QZSS constellations

  • Fast start-up and reacquisition times with scalable accuracy

  • Interference Mitigation technology

  • Supports Atlas Global Correction Service for improved performance and repeatability over SBAS

  • Available dual serial, NMEA 2000/CAN, and GSI pulse output interface options

  • RTK™ Upgrade Option – compatible with A631 RTK™ base station and cellular RTK™ networks

Part Number: Basic - 940-2215-10 | RTK - 940-2225-10 | Rover Radio - 910-0046-01



Ac110
Application Control

  • Single product rate control

  • Up to 10 section autoboom shutoff

  • Variable rate compatible

  • Controls liquid, dry, and anhydrous ammonia

  • Simple auto-calibration procedure

  • Works seamlessly with STX, MAX, and REBEL terminals

  • Integrated rate and section control eliminates cab clutter

Part Number: 910-5004-000



Click Here for options & Accessories diagram:
